Plastic Injection Mold Manufacturer: The Tooling Partner Behind Every Plastic Part

A plastic part starts as a mold. The housing, the cap, the container, the gear, all of it takes shape inside a steel tool built to tolerances measured in microns. A plastic injection mold manufacturer builds that tool. The part design goes in. The mold comes out, ready to run in a press. For product developers, OEMs, and plastic processors, the mold maker is the first link in the chain. The part only works if the mold works.

The Part Design Comes First

The mold starts with the part. The wall thickness, the draft angles, the ribs, the bosses, the gate position, the parting line. Every decision follows from the part geometry and the resin. A plastic injection mold manufacturer reads the drawing and translates it into steel.

The resin matters. Polypropylene shrinks one rate. Polycarbonate another. Nylon another. The mold cavity is cut larger than the finished part by exactly the shrinkage factor. Get that number wrong and the part comes out undersized.

The gate position decides how the melt enters the cavity. The weld lines land where the flow fronts meet. The ejector pins push on the ribs and the bosses, not on the visible surfaces. A plastic injection mold manufacturer designs all of this before the steel is cut.

Steel Selection and Machining

The steel choice depends on the production volume. A prototype mold uses aluminum or P20. A production mold uses H13 or S136. H13 holds up for millions of cycles. S136 polishes to a mirror finish for the clear parts. A plastic injection mold manufacturer selects the steel for the volume and the material.

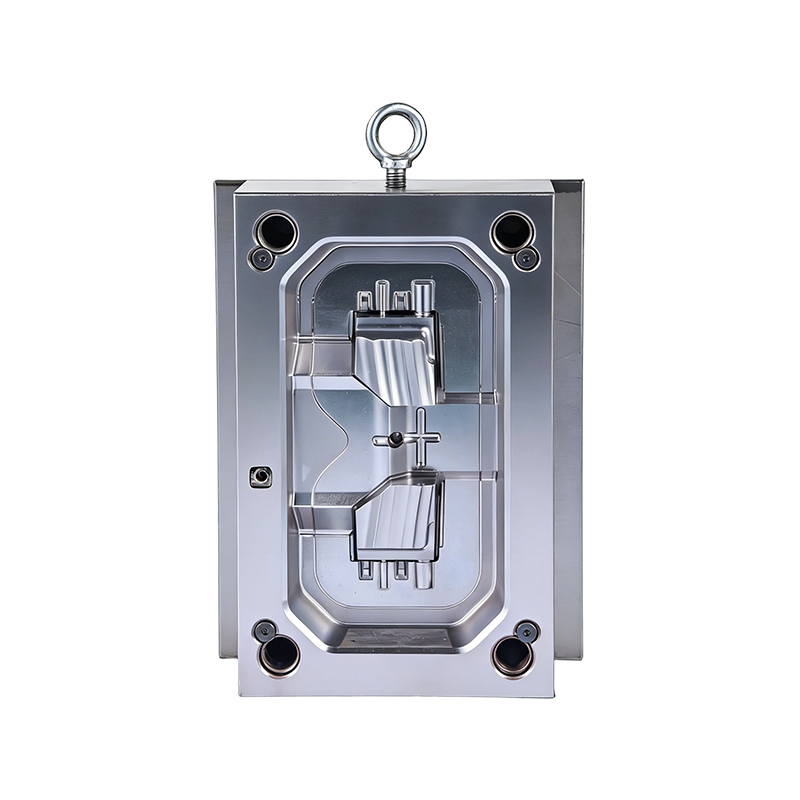

The machining starts with CNC roughing. The mill removes the bulk of the steel. EDM follows for the deep ribs, the sharp corners, and the fine details the mill cannot reach. The cavity and the core are machined separately, then fitted. A plastic injection mold manufacturer grinds the parting line flat so the mold closes without flash.

The surface finish matters. A polished cavity makes a smooth part. A textured cavity hides sink marks. A plastic injection mold manufacturer delivers the finish the part requires.

Cooling, Ejection, and Venting

The cooling system controls the cycle time. Channels drilled through the core and cavity carry water to pull heat from the melt. A plastic injection mold manufacturer with proper cooling design fills evenly and solidifies fast.

The ejection system pushes the part off the core. Pins, sleeves, or stripper plates are placed where the marks do not matter. A plastic injection mold manufacturer that positions the ejection correctly avoids the scrap parts and the stuck molds.

Venting lets the air escape ahead of the melt. Trapped air burns the resin and leaves the black specks. A plastic injection mold manufacturer with proper venting produces clean parts.

Here is what a plastic injection mold manufacturer needs to deliver:

• Mold design based on part geometry and resin shrinkage
• Steel selection matched to volume and material
• CNC machining and EDM for cavity and core
• Cooling channels for cycle time and part quality
• Ejection and venting placed for clean release
• Surface finish matched to the part requirement

From First Shots to Production

The mold is assembled and mounted in a press. The first shots come out. The designer checks the fill, the dimensions, the surface. Adjustments follow. A plastic injection mold manufacturer goes through several rounds before the part matches the drawing.

The trial run tests the mold under production conditions. The cycle time is measured. The part weight is checked. The dimensions are verified. The mold is done when the parts look right at the required cycle time.

The mold ships with the documentation: the steel certificates, the dimensional reports, the maintenance schedule. A plastic injection mold manufacturer that provides the paperwork gives the molder what they need to run the tool for its full life.

The Rework That Costs More Than the Mold

The mold is cut before the design is frozen. The part changes. The steel is scrap. A plastic injection mold manufacturer that waits for the frozen design avoids this. The cooling is inadequate and the cycle runs slow. The part warps. A proper cooling design prevents it. The ejection is placed wrong and the part sticks. The mold has to be reworked.

A plastic injection mold manufacturer is the partner that turns a part design into a production tool. The steel is right. The machining is right. The cooling, the ejection, the venting are right. The parts come out clean and consistent, every cycle. That is the job. That is what the mold maker is for.
