Key Design Challenges for Small Precision Molds

The first challenge is gating. On a tiny part, there is simply no real estate for a standard submarine gate or a fan gate. Designers frequently fall back on pin-point gates or film gates, but those generate high shear heating right at the entry point. Too much shear, and the polymer degrades, leaving burn marks or black specks inside the cavity. Too little shear, and the melt front stalls before reaching the far wall of a two-millimeter-long feature. Finding the sweet spot often requires flow simulation at a finer mesh resolution than most shops bother with.

The second challenge is ejection. Small precision parts have tiny ribs, delicate clips, and thin walls. A standard ejector pin with a two-millimeter diameter is frequently larger than the entire feature it is supposed to push against. That forces mold designers to reach for sleeve ejectors, stripper plates, or even air poppets—all of which cost more and introduce new failure modes. One mold builder shared a story about a 0.5-gram connector housing that kept sticking to the core side. The fix was not bigger pins but a nano-coated surface finish that reduced adhesion forces by nearly 70 percent.

The third challenge is cooling. You cannot drill a three-millimeter water line through a mold base and expect it to snake around a one-and-a-half-millimeter core pin. Standard straight-drilled cooling channels leave hot spots everywhere. The advanced solution is conformal cooling via metal 3D printing, but that raises mold cost by 30 to 45 percent. Many shops compromise by using beryllium-copper inserts only around the most critical core pins. A real-world example: a four-cavity mold for hearing aid shells took eight weeks to resolve a 0.005-millimeter ovality issue. The root cause turned out to be asymmetric cooling around a core pin that was simply too small to accommodate a conventional water line. The final fix involved adding a heat pipe—a component borrowed from laptop thermal management—to pull heat away from the pin tip.

Material Selection for Multi-Cavity Molds

When annual production runs climb past one million parts, the engineering conversation inevitably shifts to material selection for multi-cavity molds. A 32-cavity mold running a 20-second cycle will cycle over four million times per year. That kind of mechanical and thermal repetition destroys soft steel very quickly.

For the majority of multi-cavity applications, the industry baseline remains DIN 1.2343 (roughly equivalent to AISI H11) or DIN 1.2344 (AISI H13). Both are hot-work tool steels specifically formulated to resist heat checking and thermal fatigue. They harden to a range of 48 to 52 HRC while retaining reasonable toughness. But here is where experienced mold builders split into different camps.

For commodity caps, closures, and thin-walled containers made from polypropylene, Stavax (AISI 420 modified) offers superior corrosion resistance. Why does that matter? Polypropylene degrades slightly when overheated, releasing trace amounts of formic acid. That acid attacks the polished surface of standard H13 cavities, leaving microscopic pits that show up as dull, cloudy spots on the final part surface. Stavax resists that attack. It costs about 25 to 35 percent more upfront, but users regularly report cavity life extending by two or even three times compared to H13 in the same application.

For truly punishing applications like glass-filled nylon electrical connectors or pump housings, powder metallurgy steels enter the conversation. Vanadis 4 Extra and CPM 10V hold a cutting edge and resist abrasive wear far longer than any conventionally cast tool steel. The trade-off is painful: machining these alloys requires carbide tooling, slow feed rates, and frequent passes. A single cavity pocket that takes eight hours to rough and finish in H13 might consume twenty hours of machine time in CPM 10V. One automotive supplier ran a direct comparison. A 16-cavity mold for PET preforms made from H13 needed cavity polishing every 800,000 cycles. An identical mold built from CPM 10V ran 2.2 million cycles before showing measurable wear. The upfront tooling cost more than doubled, but the savings in downtime and maintenance covered the difference within fourteen months of production.

For molds running abrasive materials like ceramic-filled PBT, some shops skip traditional steel altogether and specify tungsten carbide cavity inserts. That is an extreme solution—machining tungsten carbide requires diamond tooling and electrical discharge machining for nearly every feature. But when each cavity produces two million parts per year and a steel insert lasts only three months, the math suddenly favors carbide.

Processing Technologies for Molds Used in Household Plastic Daily Necessities

Hot Runner Systems for Thin-Walled Containers

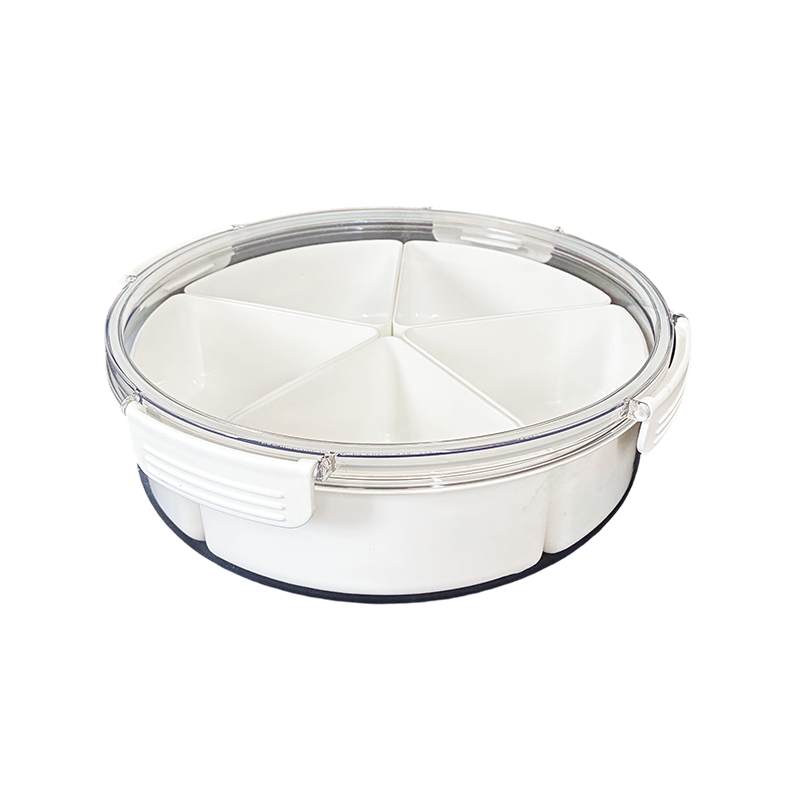

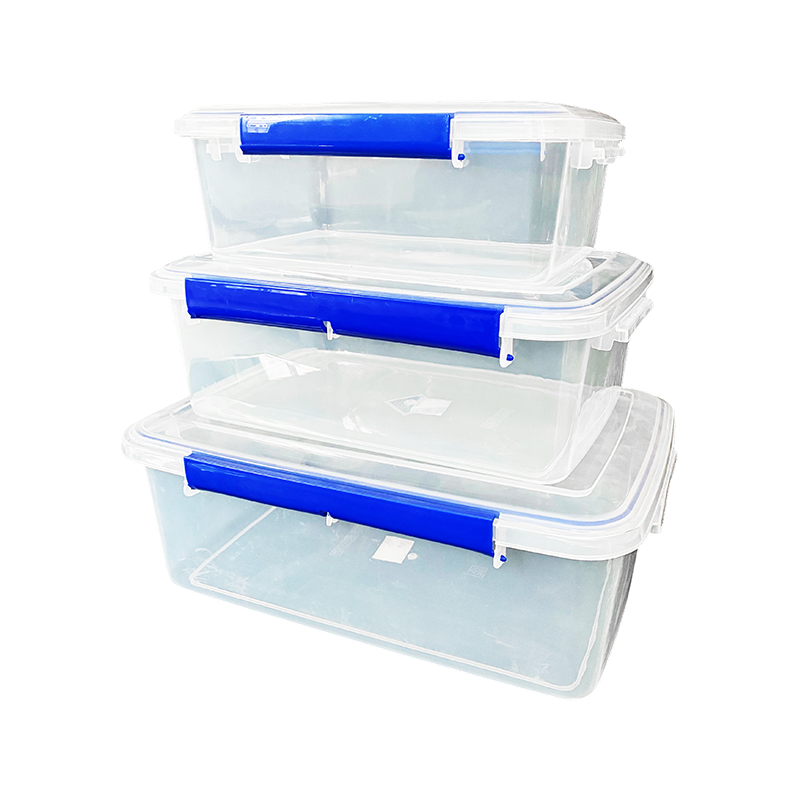

Let us walk through the processing technologies for molds used in household plastic daily necessities—products like yogurt cups, storage bins, laundry baskets, food containers, and waste bins. Each product category favors a different mold architecture. For thin-walled containers where cycle time is the only metric that matters, hot runner systems with valve gates dominate. This technology keeps the entire melt path warm and eliminates cold runner waste entirely.

Three-Plate Cold Runner for Mixed-Size Components

Not every household mold justifies the expense of a hot runner. For products like modular drawer organizers or refrigerator bins where cavity sizes differ significantly, a three-plate cold runner design makes better economic sense. The third plate (the stripper plate) pulls away from the runner system, allowing parts and runner to drop freely into a collection bin. The downside is material waste—the cold runner can weigh as much as the parts themselves, especially in multi-cavity layouts. But for production runs under 250,000 cycles or for resins that degrade easily in hot runner systems (like some grades of PVC or acetals), the lower mold cost and simpler maintenance often outweigh the resin loss. A Midwest molder runs a six-cavity three-plate mold for refrigerator egg trays.

Stack Molds for Ultra-High-Volume Commodities

When annual demand passes five million units, stack molds become highly attractive. A stack mold has two separate parting lines and two complete sets of cavities—one set on each side of a rotating center block. The output doubles without increasing clamp tonnage. For household essentials like five-gallon bucket lids or paint pails, stack molds are the industry standard. The catch is mechanical precision. A stack mold requires perfect center block alignment within 0.02 millimeters. A mismatch of just 0.1 millimeters between the upper and lower cavities produces flash on one side and short shots on the other.
